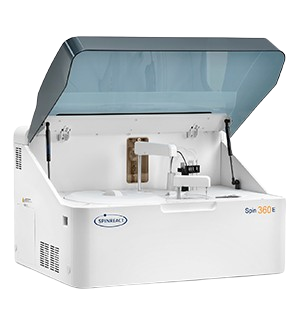

Spin 360E Clinical Chemistry Automatic Analyzer

Description

Sample system:
50 to 100 positions for samples
Sample volume: 2~35μL, step by 0.1μL
Pre-dilution and post-dilution
Carry over < 0.05%
Reaction system:
80 reusable cuvettes
Reaction volume: 100~360μL
Reaction temperature at 37 ºC ±0,1 ºC by air bath
Optical system:
Halogen-tungsten lamp
12 wavelengths, 340nm, 380nm, 412nm, 450nm,
505nm, 546nm, 570nm, 605nm, 660nm, 700nm,
740nm, 800nm
Calibration:
Calibrator auto-dilution
Methods:
K factor, Linear (two points and multipoints),
Logit-Log 4P, Logit-Log 5P, Spline, Exponential,
Polynomial, Parabola, Logit-Log3P, Broken line
Control Methods:
Westgard multi-rule, Levey-Jennings, Cumulative
sum check, Twin plot
Operating system
Windows
Ethernet connection
PC not included
